1.54 inch electronic paper ink screen 152x152 black and white EPD electronic paper display ink screen

Display Specifications

• Size: 1.54-inch electronic paper, ink screen

• Material: Active Matrix Electroph oretic Display (AM EPD)

• Resolution: 152 (H) x 152 (V) Pixel

• Driver chip: SSD1680

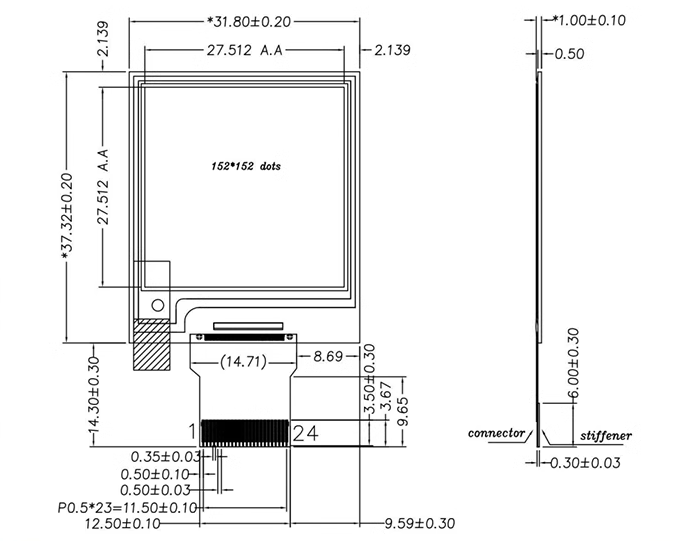

• Display area: 27.512 x 27.512 (mm)

• Module size: 32x50x2.2 mm

• Pixel pitch: 0.181 x 0.181

• Interface type: SPI

• Display color: black and white two-color - supports partial refresh; black, white and red three-color - does not support partial refresh, can only refresh the full screen

• Viewing direction: full viewing angle

• Operating temperature: 0~40℃

• Storage temperature: -25~70℃
