2.13 inch electronic paper ink screen 122×250 black, white and red three-color EPD electronic paper display

Display Specifications

• Size: 2.13-inch electronic paper, ink screen

• Material: Active Matrix Electroph oretic Display (AM EPD)

• Resolution: 122 (H) x 250 (V) Pixel

• Driver chip: SSD1680Z

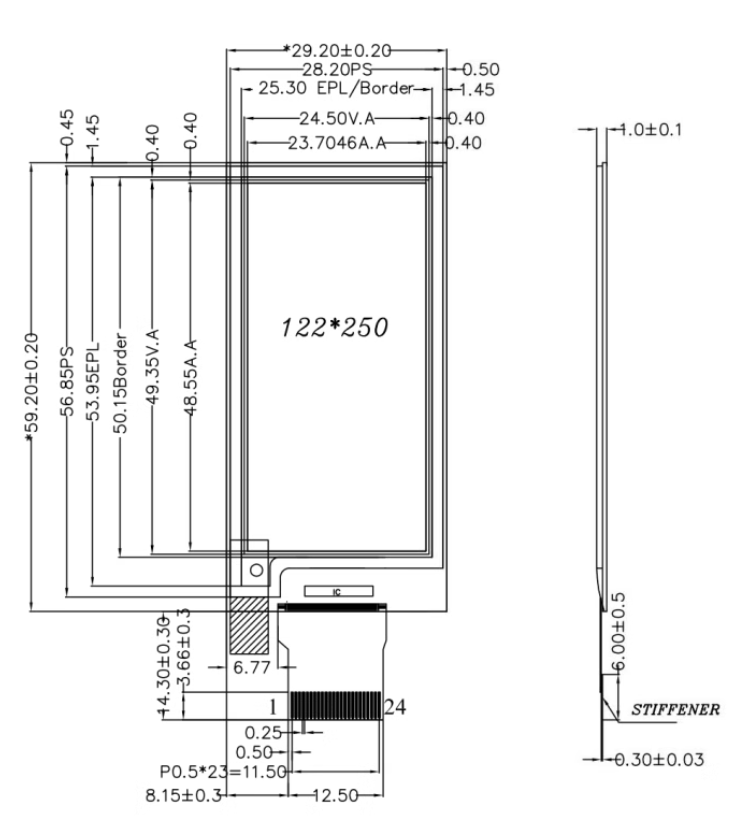

• Display area: 23.7046 x 48.55 (mm)

• Panel size: 30 (H) x 71.2 (V) x 2.35 (D) (mm)

• Pixel pitch: 0.1943 x 0.1942

• Interface type: 3-/4-wire SPI

• Display color: black and white two-color--support partial refresh; black and white and red three-color--do not support partial refresh, only full screen refresh;black and white and red and yellow four-color--do not support partial refresh, only full screen refresh

• Operating voltage: 2.2~3.7V

• Connection method: 8Pin 25.54mm pin spacing

• Viewing direction: full viewing angle

• Weight: 10.0±0.5 g

• Operating temperature: -0~50 degrees
• Storage temperature: -25~70 degrees
