3.5" 320x240 TFT Display Panel (SSD2119) With Capacitive Touch - SPI, MCU, RGB

3.5" 320x240 TFT Display Panel (SSD2119) With Capacitive Touch - SPI, MCU, RGB

$59.90 USD
$59.90 USD
Sale Sold out
Shipping calculated at checkout.

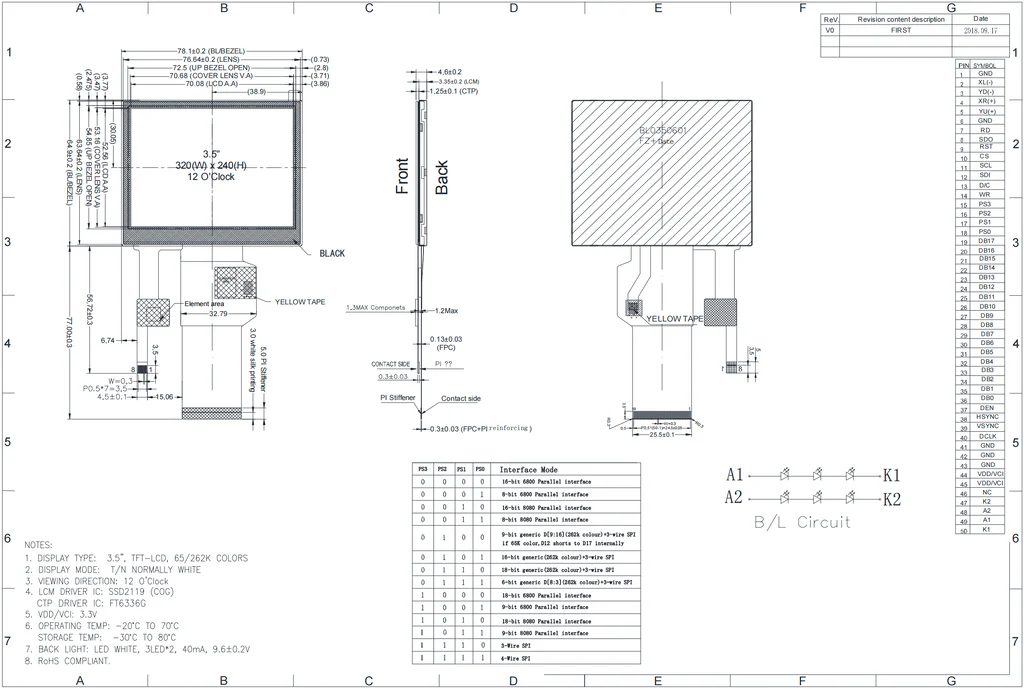

Display Specifications

  • Diagonal Dimension : 3.5 inch
  • Resolution : 320x240 pixel
  • View Direction : 12 o'clock
  • Touch Mode : Capacitive
  • Module Dimension : - mm
  • Viewing Area : 70.08x52.56 mm
  • Supply Voltage : 3.3 V
  • Interface : 8/9/16/18-Bit MCU, 3/4-Wire SPI+16/18 Bit RGB
  • Luminance : 300 cd/m2
  • Drive IC : SSD2119
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
