1.75" TFT Display 296x220 Transflective - MCU

1.75" TFT Display 296x220 Transflective - MCU

$29.90 USD
$29.90 USD
Sale Sold out
Shipping calculated at checkout.

Display Specifications

  • Diagonal Dimension : 1.75 inch
  • Resolution : 290RGBx222 pixel
  • View Direction : -
  • Touch Mode : None

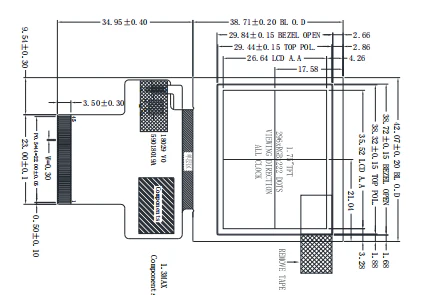

  • Module Dimension : 42.07x39.71x2.5 mm
  • Viewing Area : 35.52x26.64 mm
  • Supply Voltage : -
  • Interface : 16 bit MCU
  • Luminance : 350 cd/m2
  • Drive IC : ILI9342
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
